Wood

F 500 V3 Oslo CF

Tax Credit Approved

Jøtul wood stoves that qualify for the Biomass Tax Credit!

Jøtul Fusion Technology

Description

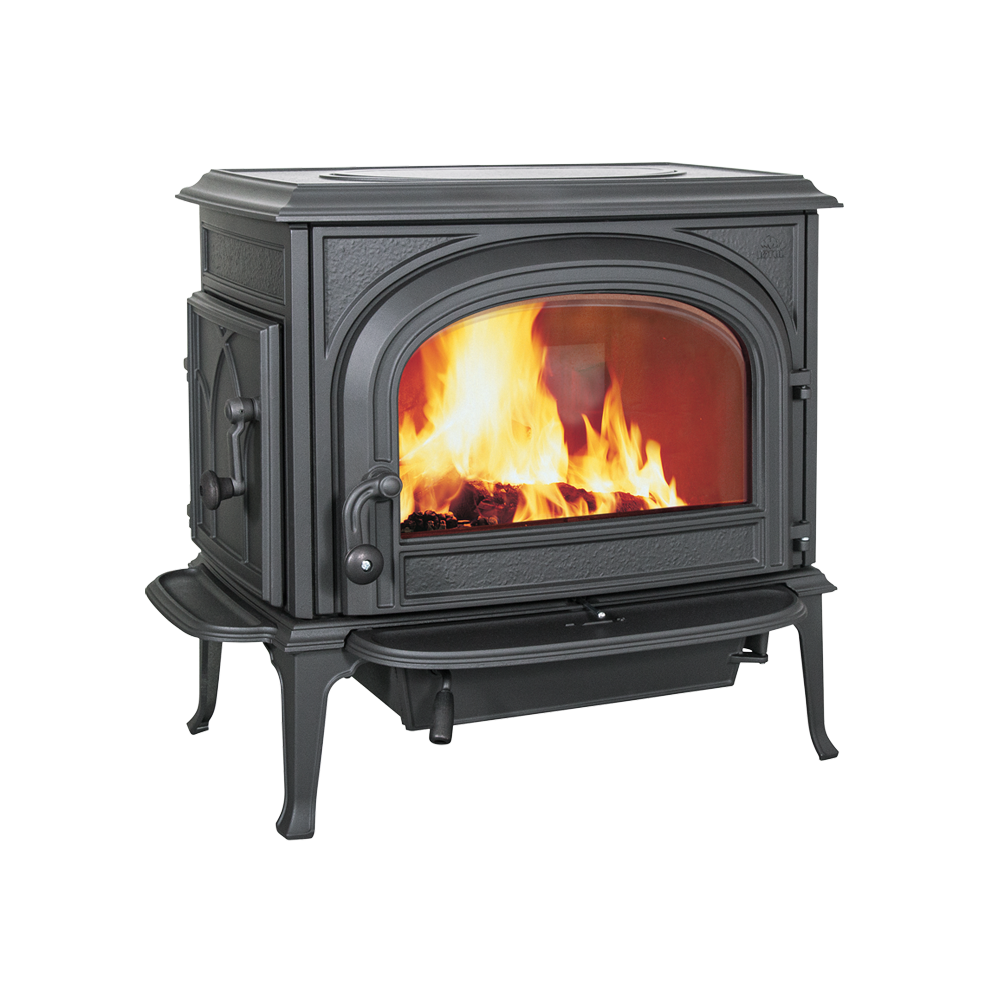

Two time Vesta award winner, including Best in Show and Best New Technology, The Jøtul F 500 V3 Oslo CF now offers an unobstructed view of the fire as well. Utilizing patented Jøtul Fusion™ Technology, the F 500 V3 Oslo was able to combine the best aspects of a typical non-catalytic wood stove with ground breaking Jøtul High Flow™ Combustor technology to create a clean burning wood stove that operates without the need for a bypass. The absence of a combustor bypass allows the F 500 V3 Oslo to operate in clean burn mode 100% of the time.

Jøtul Fusion™ technology creates a clean burning woodstove that operates without the need for a bypass
Closer clearances to combustibles than “Hybrids” because there is no open bypass mode
Jøtul High Flow™ Combustor creates minimal flow resistance, eliminating "back puffing" and draft sensitivity
Efficiency LHV 84.7% HHV 78.4%

Size

Height: 28.5 in

Width: 28.75 in

Depth: 22.5 in

Colors

(Selected)

Black paint (Selected)

Technical Specifications
Manuals/Documents

Specifications

Height 28.5 in
Width 28.75 in
Depth 22.5 in
Weight 445 lb
Log size up to 24 in
Flue outlet 6 in
Flue exit options Top / Rear
Burn time up to 10h
Height optional short legs 26.00

Emission 0.50 gr/hr
Heating capacity up to 2300 sqft

Mobile Home approved Yes

Exploded view (1.48 MB)

Epa report (9.44 MB)

Wood Product Planning Guide 2020 Rev. C.pdf (7.59 MB)

Installation- and User Manual (3.5 MB)

MANUAL, F 500 V3.pdf (3.5 MB)

History & Craftmanship

From the core of

Norway

Jøtul's cast iron stoves and fireplace inserts have been crafted in Norway since 1853. For more than 160 years Jøtul has worked at mastering the art of fighting the cold.

Learn More
