Gas

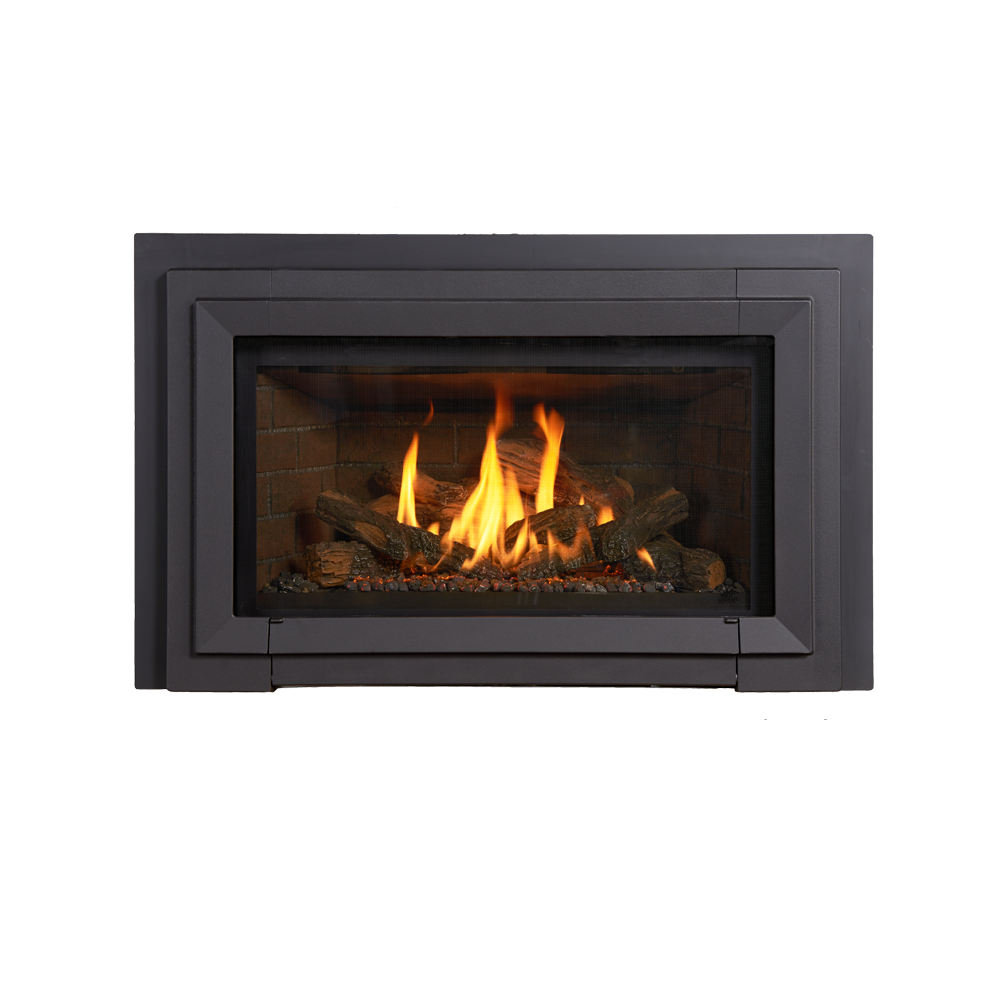

GI 545 DV Winter Harbor

Modern Classic Gas Insert

Description

With its contemporary styling and nod to tradition, the Jøtul GI 545 DV Winter Harbor is well suited to fit any interior. With a variety of burner media and interior panel options, this fireplace insert combines Jøtul's connection to old world craftsmanship and modern technology .

A choice of two firebox options (standard blower or optional blower)
Reliable millivolt gas controls
Choice of Traditional Logs, Beach Fire, or Birch logs media treatments
Choice of required overlays: Cast Iron (Matte Black Paint or Blue Black Enamel) or Rectangle or Arched Steel (Matte Black, Jotul Iron™ or Bronze Powder Coat)

Size

Height: 19.75 in

Width: 29.625 in

Depth: 14.5 in

Colors

Matte black (Selected)

Blue black (Selected)

Bronze (Selected)

Iron (Selected)

Technical Specifications
Manuals/Documents

Specifications

Height 19.75 in
Width 29.625 in
Depth 14.5 in
Weight 163 lb
Flue outlet 3 in
Flue exit options Top
Flue outlet height, center top 19.63

Heating capacity up to 1800 sqft
Efficiency (Energuide) (NG) 61.37% / (LP) 64.26%
Min/Max Heat Input (LP) 13.500 - 28.000
Min/Max Heat Input (NG) 16.000 - 30.000

Exploded view (999.77 KB)

Gas Planning Guide Rev. D.pdf (15.86 MB)

Installation- and User Manual (11.76 MB)
